| Article number: | 361823566 |
| Availability: | In stock |
| Delivery time: | 5 - 7 workdays |

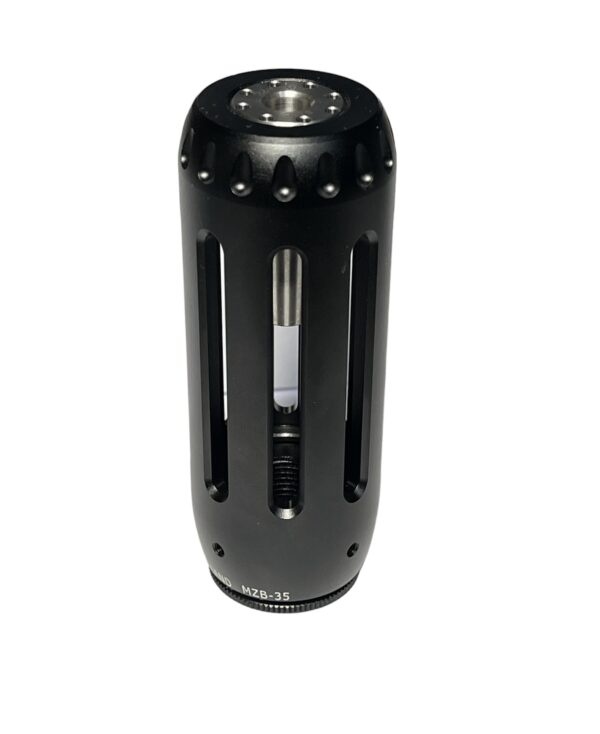

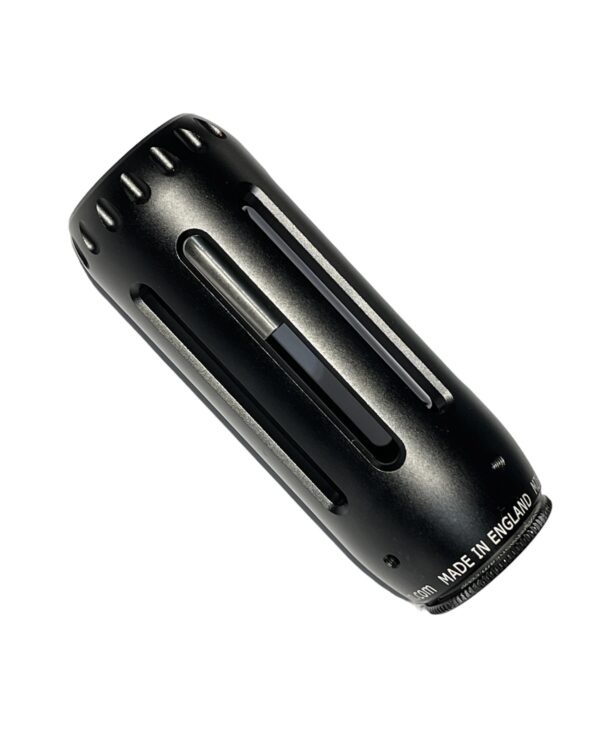

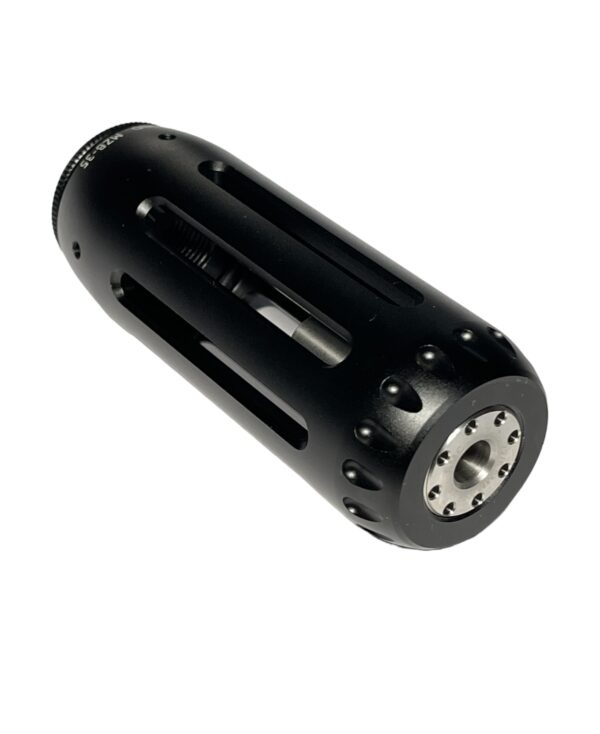

The Eagle Vision Air Stripper muzzle brake is compatible with air rifles and redirects the escaping air to the sides. This actively compensates for recoil, making it easier to keep the rifle stable. The muzzle brake is completely CNC machined, which guarantees minimal tolerances.
With the Eagle Vision Air Stripper muzzle brake you get four caliber adapters with which the muzzle brake can be mounted on different calibers. These adapters are easily interchangeable and can be permanently mounted.
This complete set comes with caliber adapters for the following calibers:
- 4.5 mm (.177)
- 5.5 mm (.22)
- 6.35 mm (.25)
- 7.62 mm (.30)

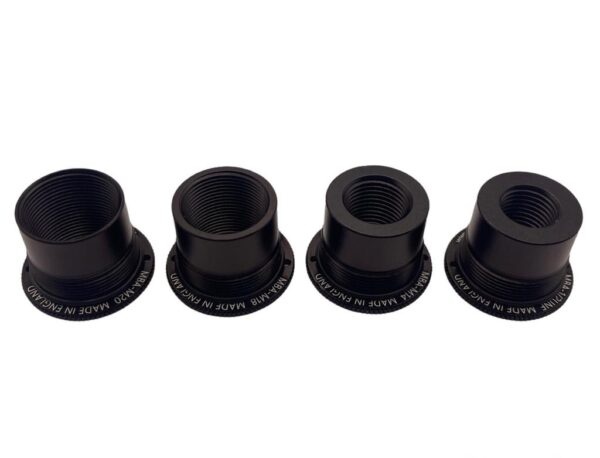

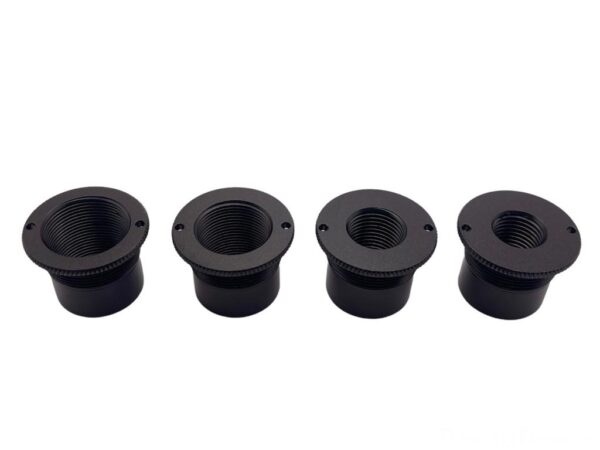

In addition, you will receive four end caps with the muzzle brake, which can be used to attach the muzzle brake to different types of threads. This allows you to easily mount the muzzle brake on different barrels. The end caps can be used universally for all Eagle Vision muzzle brakes, moderators and barrel tuners. The muzzle brake is supplied with the following end caps:
- ½ UNF
- M14x1.25
- M18x1
- M20x1
Product specifications:
Length: 90 mm
Outer diameter: 35 mm
Weight: 83 grams
End thread: M23 x 1
Front thread: M15 x 0.6
Scope of delivery:
1 x muzzle brake
1 x storage case
4 x O-rings
6 x M3 screws
1 x Allen key
1 x end adapter of your choice from the options:
1/2 UNF X 20 ring diameter 29 x 2mm 17GR
M14X1.25 ring diameter 29 x 2mm 15GR
M18X1 ring diameter 29 x 2mm 8GR
M20X1 ring diameter 29 x 2mm 6GR

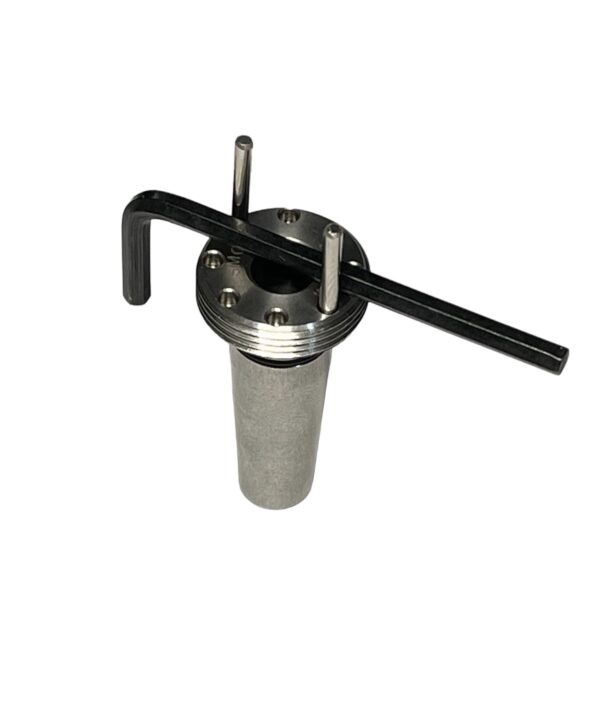

Each copy contains: 2 x stainless steel tool bar 1 x Allen key

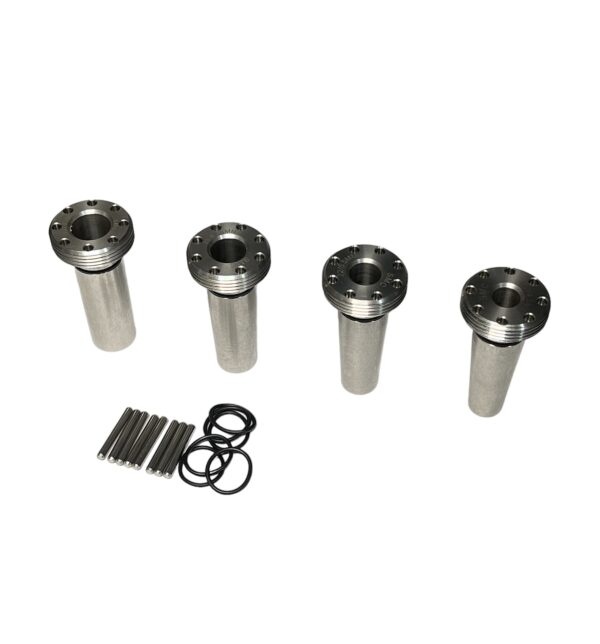

4 x caliber-specific adapters (SMC)
177 21GR bore 6mm
22 20GR hole side 7mm
25 18GM hole side 8mm
30. 16GR hole side 9mm
(including 8x stainless steel tool bars)
ATTENTION: Please inform yourself about the exact legal regulations in your country before purchasing.
