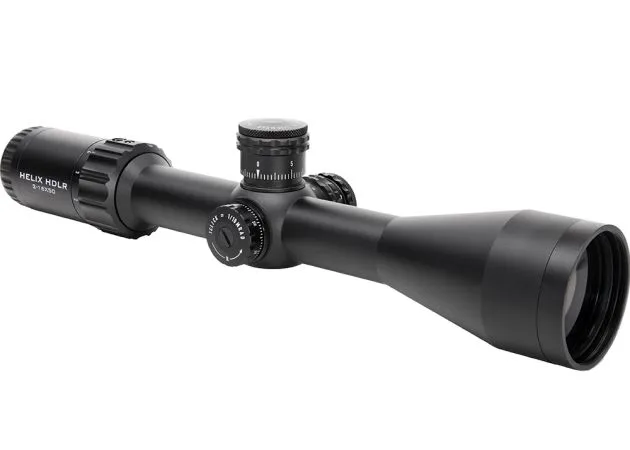

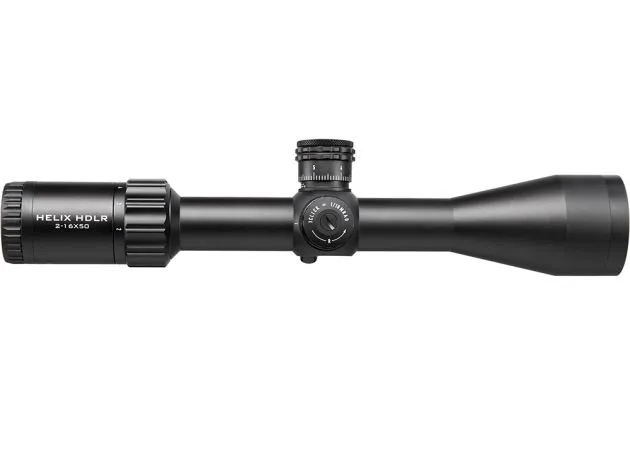

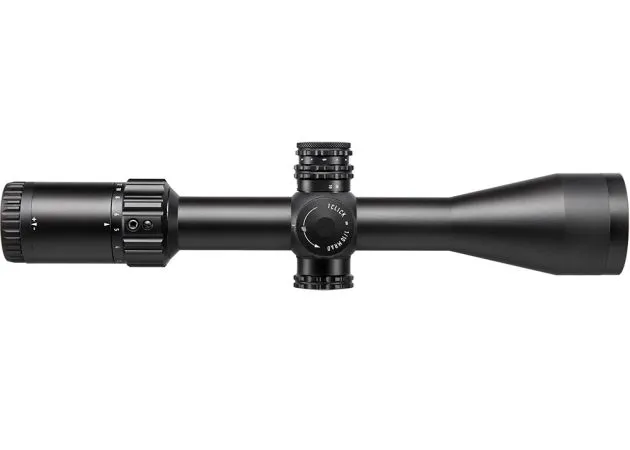

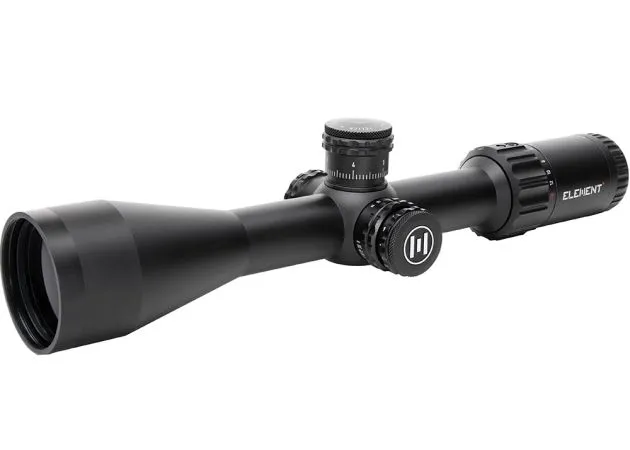

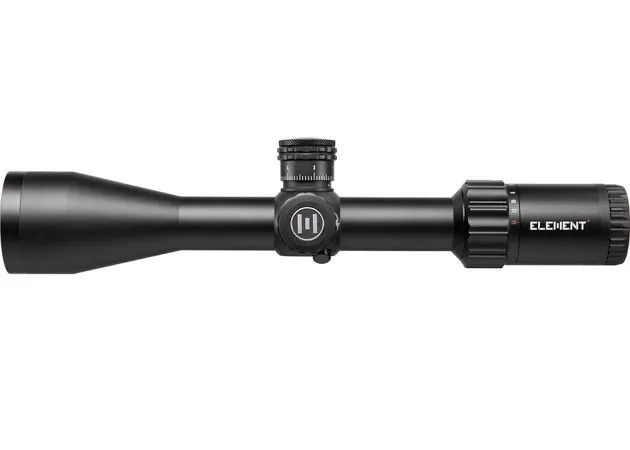

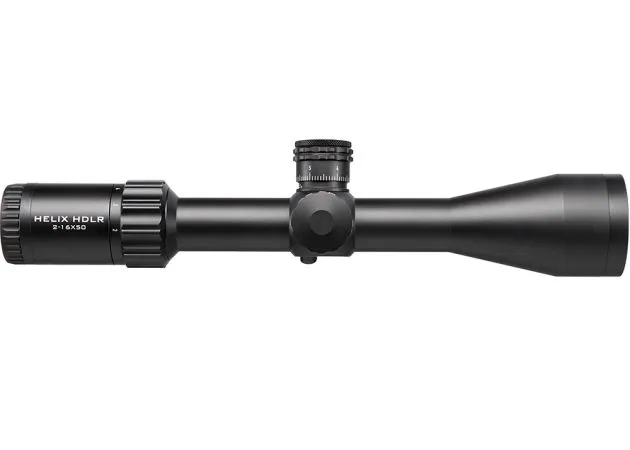

The Helix HDLR 2-16x50 with APR-1C reticle is, together with the Helix HD, a new member of the Helix family from Element Optics, but has similarities to the Titan in terms of optical performance.
The Helix HD riflescope has the same quality, chemical composition and number of lenses as the Titan, ensuring sharp images across the entire magnification range of 2-16x.
The Helix HDLR (High Definition Long Range) riflescope offers the following features:
- Compact and lightweight
- Illuminated reticle
- Reticle in the second focal plane (remains the same size regardless of magnification)
- 50 mm lens for optimal light transmission to the eye
- 30 mm tube diameter for a large reticle adjustment range
- Parallax can be adjusted from 10 m to infinity
- Maximum 100 MOA or 29 Mrad elevation adjustment range

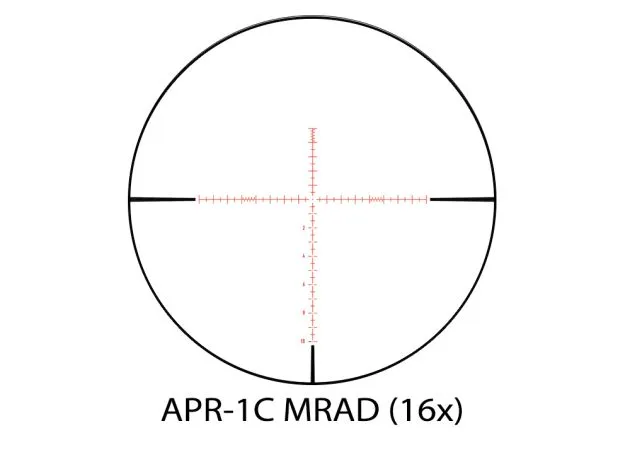

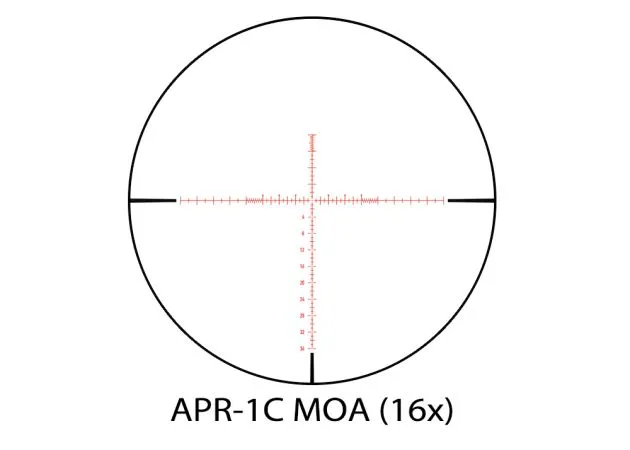

- APR-1C reticle, available with MOA or Mrad divisions, calibrated to maximum 16x magnification
- The majority of the reticle is evenly illuminated and is displayed clearly and without stray light
- The elevation turret is exposed and has a zero stop
Scope of delivery:
HELIX HDLR 2-16x50 rifle scope
Flip-up covers
Lens cloth
Lens protection
Sun visor
Thread protection
Throw lever
Tool
Specifications:
Optical magnification 2-16x
Lens diameter (mm) 50
Tube diameter (mm) 30
Reticle APR-1C MRAD, APR-1C MOA
Reticle position 2nd focal plane
Focus Side Focus
Lighting Yes
Eye relief (mm) 101.6
Field of view at 100 meters 20.2-2.51
Turret adjustment 0.1 Mrad, 1/4 MOA
Length (mm) 340
Weight (grams) 770
Brackets included No
Color Black
