| Article number: | 361823333 |
| Availability: | In stock |
| Delivery time: | 5 - 7 workdays |

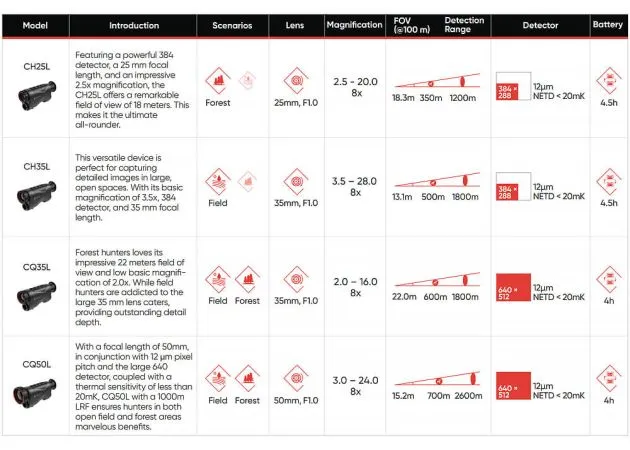

You can purchase the HIKmicro Condor thermal imaging camera in our shop in the versions CH25L, CH35L, CQ35L and CQ50L .
The Condor thermal imaging camera from HikMicr o has everything you need to see clear thermal images day and night, in most weather conditions and temperatures thanks to its IP67 protection rating .
Its powerful 384x288 thermal sensor with a high sensitivity of ≤20 mK produces clear views and vivid images based on thermal differences. The focal length of 25 to 50 mm (depending on the model) offers a field of view of 18 meters at a distance of 100 meters, with a detection range of 1200 meters, ideal for forest landscapes.
In addition, the Image Pro image optimization algorithm sharpens the edges of objects for even clearer images. Images can be displayed in 4 color schemes : White Hot, Black Hot, Red Hot and Fusion.
To estimate the distance between the thermal imaging monocular and the target, you can use the integrated laser rangefinder (LRF) to measure distances to objects of up to 1000 meters .

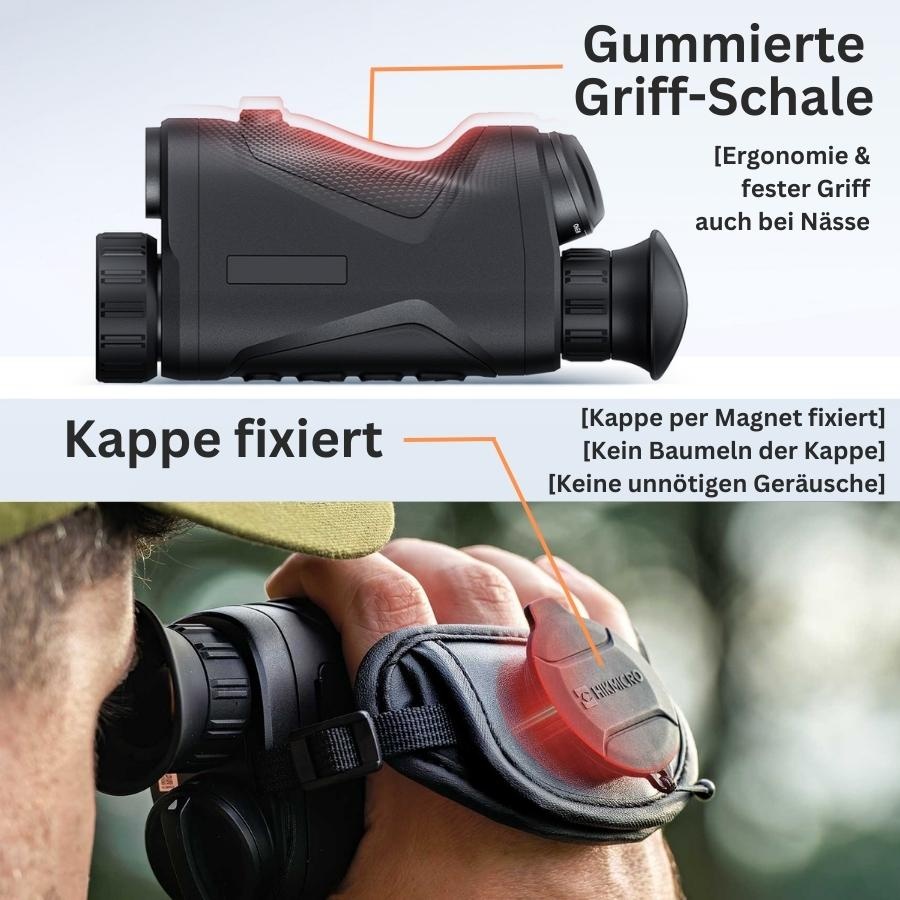

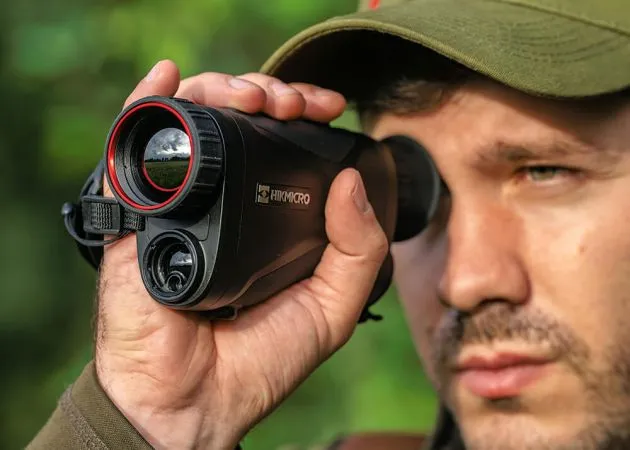

The ergonomically designed Condor thermal imaging device fits comfortably in your hand, even during longer observations. The attachment point on the bottom means it can also be attached to a tripod . The easy-to-use buttons on the top of the device allow you to operate the 1 to 8x digital zoom, the menu , the laser rangefinder and the on/off button .
The 18650 battery is rechargeable and replaceable. To further increase battery life, the display automatically turns off when the device is tilted more than 70 degrees .
With HikMicro's T-Vision app (for Android and iOS platforms), you can transfer photos and videos to your smartphone via a WiFi hotspot and also change your settings. The app can also serve as a second display for the device.
Other features:
50mm f1.0 optics
640x512px
20mK NETD
Discovery distance >2600m
replaceable 18650 batteries
Very good image processing
Waterproof
Tripod thread
USB C port
WIRELESS INTERNET ACCESS
Specifications:
Resolution of the microbolometer 640x512
Frame rate Hz 50
Pixel pitch, µm 12
NETD mK 20
Display OLED
Display resolution pixels 1024x768
Memory GB 64
Magnification x 3
Digital zoom, x 3-24 (8x)
Field of view, °, horizontal / vertical 8.7/7.0
Field of view, m @ 100m, horizontal / vertical 15.2 / 12.2
DMR, cm/pixel @ 100m 2.4
Diopter adjustment -5 ... +3
Detection distance, m (human figure 1.7x0.5 m) 2600
Laser rangefinder
Laser Class Class 1
Wavelength, nm 905
Min. measuring range, m 10
Max. measuring range, m 1000
Measurement accuracy, m +/-1
Power supply
Supply voltage, V 3.7
Feeding elements 18650
Battery life, hours max. 4
External power supply 5V USB-C
Operating parameters
Protection class (according to IEC 60529 standard) IP67
Operating temperature, °С -30 ... +55

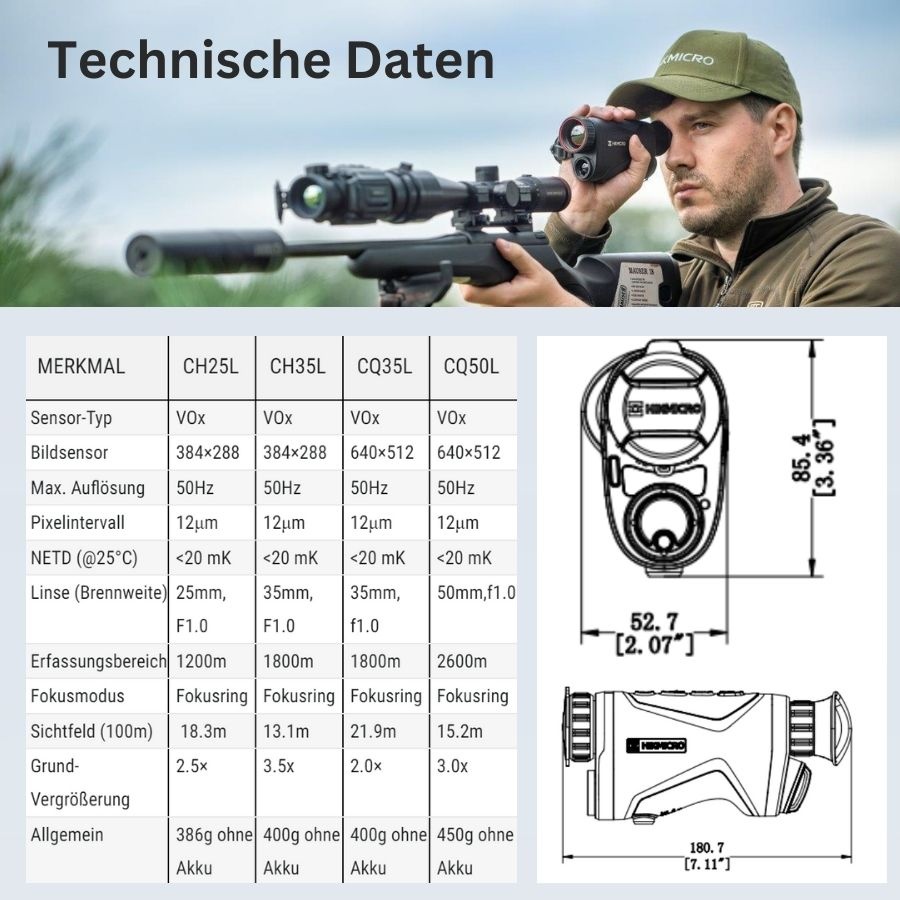

Dimensions, mm 197x60x95
Weight (without batteries) 450 grams
scope of delivery
