You can purchase the HIKmicro Falcon thermal imaging camera in our shop in the versions FH25, FH35, FQ25, FQ35 and FQ50 .

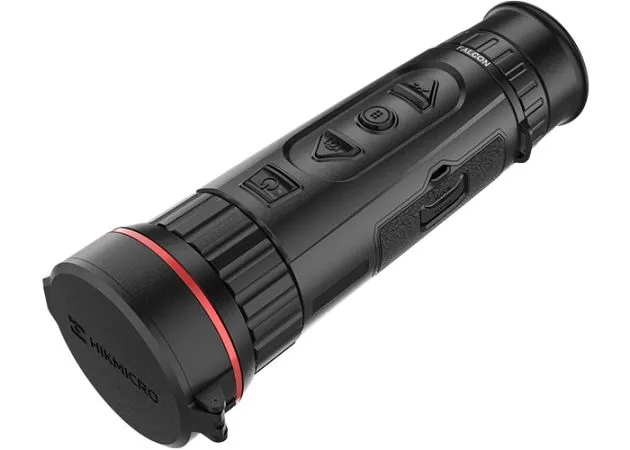

The HIKmicro Falcon thermal imaging monocular is a compact, handheld thermal imaging camera from the Falcon series by HikMicro.
The compact and easy-to-use handheld device is ideal for tracking, observing and identifying game.
Cleverly placed controls can be operated by left- and right-handed people via touch . In addition, the thermal imaging camera is waterproof to IP67 , which means it is resistant to moisture such as heavy rain or snow and can be submerged in 1 meter deep water for a maximum of 30 seconds.
A large F1.0 aperture with an aspherical germanium lens registers large amounts of infrared radiation and offers a detection range of 1200 meters.

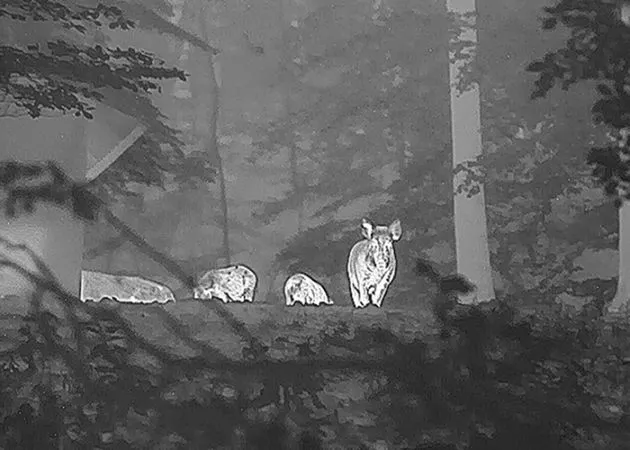

The ≤20 NETD mK thermal module and the 12 µm sensor with a resolution of 384 x 288 pixels ensure detailed and high-contrast images. In addition, the image enhancement algorithm Image Pro ensures that objects and backgrounds can be recognized even better by increasing the visibility of edges.
The thermal images are displayed on an OLED color display with a resolution of 1024x768 (high definition) and can be displayed in four different color palettes : Black Hot, White Hot, Red Hot and Fusion. With the 8x digital zoom , a maximum magnification of 16x can be achieved to bring objects closer.
The 64 GB internal memory offers space for many hours of video and tens of thousands of photos. In addition, the HikMicro Sight app for Android and iOS provides a connection to a smartphone or tablet via the thermal imaging camera's Wi-Fi module for live streaming, photo and video recording, sharing files on social media, remotely controlling the device and updating the firmware.
Two batteries are included, each providing enough power for 7 hours of continuous use , and the USB-C port offers the option of a power bank as a power source in addition to normal use for charging the device or transferring data.
Other features:
Image sensor: VOx Uncooled Focal Plane Arrays
Resolution: 384 x 288
Frame rate: 50Hz
Pixel interval: 12µm
Response waveband: 8µm to 14µm
NETD: less than 20 mK (@25°C), F#=1.0
Focal length: 35 mm
Detection range: 1,800 m
Field of view: 7.53° × 5.65° / 13.2m x 9.9m (H × V)
Aperture: F1.0
Magnification: 3.03
Minimum focus distance: 3.5 m
Specifications:
Display: 0.39 inch, OLED, 1024 × 768
Frame rate: 50Hz
Palettes: Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
FFC (Flat Field Correction): Automatic, manual, external correction
Digital zoom: 1 ×, 2 ×, 4 ×, 8x
Smart Function Hot Track: Yes Hotspot: Yes
Memory: Built-in memory module (64 GB)
Video recording: integrated video recording
Snapshot: integrated image capture
Wi-Fi: Yes
Standby mode: Yes
Battery type: removable Li-Ion battery
Operating time: 7 hours with Wi-Fi off
Battery capacity display: Yes
Power: 5V, 1.75W
Working temperature/humidity: From -30 °C to 55 °C; humidity 90% or less
Protection class: IP67
Dimensions: 187.7 mm × 58.3 mm × 65.2 mm (7.39" × 2.29" × 2.57")
Weight: 505 grams
scope of delivery
